TOSLON TF740 Bait Boat Fish Finder & GPS+ More (Supplied & Fitted)


Availability: Out of stock


Product Description

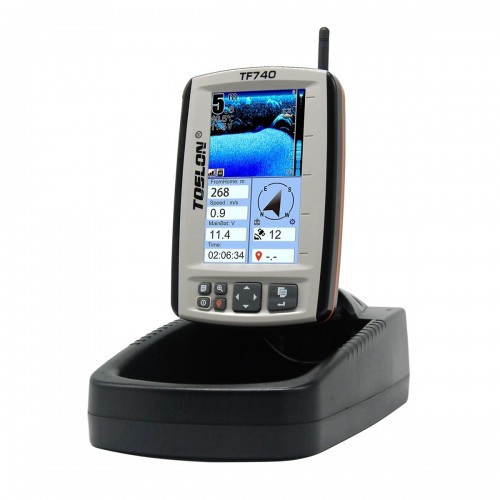

The unbelievable Toslon TF740, more detailed echo sounder, GPS + Improved Auto Pilot all in one!

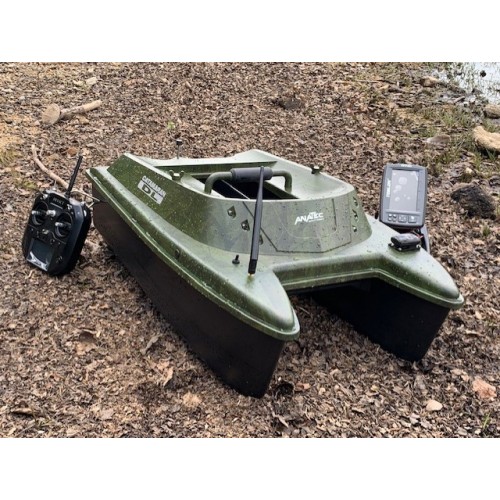

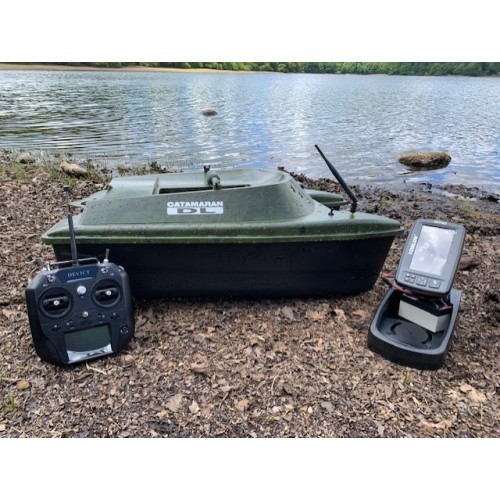

Our price is the supplied and fitted price to most Anatec Catamaran bait boats only. If you already own an Anatec and would like us to fit this unit, it is down to you to safely get your boat to us. We can provide large heavy duty boxes for a fee and arrange collection and re-delivery.

If you would like this unit to be installed to another boat, please contact Joe @ bait boat solutions.

We can sell this unit discounted for you to instal yourself on your own bait boat You will however require a 12 volt power source, switches and cables etc... Plus good knowledge of soldering.

Please note, Boat price is extra

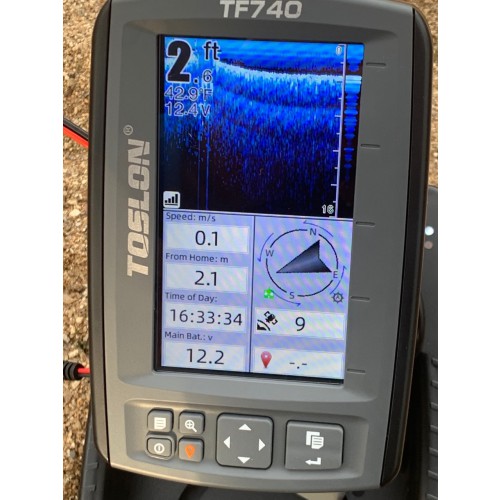

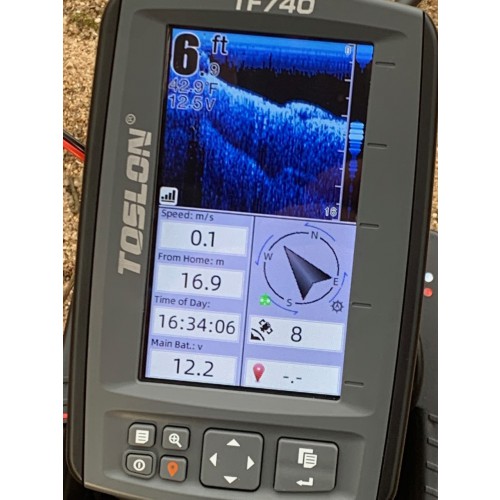

The TF740 is specially designed for bait boats. It integrates wireless fish finder, high precision compass, GPS and autopilot system. The advanced sonar features show you a detailed bottom structure and fish signals. The autopilot system accurately navigates the boat to a saved target. It's a true autonomous driving system, which can help anglers use their boats under harsh conditions, such as in the dark or in heavy fog. The TF740 supports *.kml files (which can be edited via Google Earth), then set it as the outline of the lake. It helps the angler to precisely select a point and then simply activates the autopilot mode via the [PUSH-GO] button. The TF740 is not only a fish finder, but also an unmanned operating system for bait boats.


- 120ft max depth capability

- 60 degree sonar coverage

- 455KHz Sonar frequency

- Hardware gain adjustableGPS + Compass

- 500 Waypoints

- 10 Routes to be saved

- Compass at boat and display sideAutopilot

- Pick up waypoint from map

- Push-Go key (shortcut)

- Propeller & Rudder boat support


BASIC TFT Color Screen 5"

Power DC 9~15V

AC-DC power supply (Supplied)

Water Proof Splashproof

Echo Sounder Max. Depth 40m

Sonar coverage 60 degree

Ping Rate 6Hz

Sonar Software Engine Gen3

Hardware Gain Adjustable Yes

User Defined Colour Scheme Support Yes

Colour Route to Indicate Depth(2D Map) Yes

Radio System Radio Frequency 2.4GHz

Radio Power(Max) 20dBm

Frequency-hopping spread spectrum (FHSS) Yes

Direct-sequence spread spectrum (DSSS) Yes

Max operating Range 300m

GPS & Compass GPS Accuracy(CEP) 1.5 metre

Compass at Boat Side Yes

Compass at Display Side Yes

Waypoint Number 500

Routes to be Saved 10

Autopilot Two propellers boat support Yes

Single propeller & Rudder boat support Yes

Steering Sensitivity Adjustable Yes

Wiring Test Mode Yes

Push-Go Key (shortcut) Yes

Pick up waypoint form map Yes

In our opinion, this is the first auto pilot that actually stops the boat dead on the spot as once it's hit the weypoint the motors spin in reverse for a split second appose to your boat drifting slightly beyond it's mark.

If you are confident in fitting this unit to your own bait boat we can discount this item for you. Good knowledge of wiring / soldering is required plus you would need to source batteries, cables, switches etc...

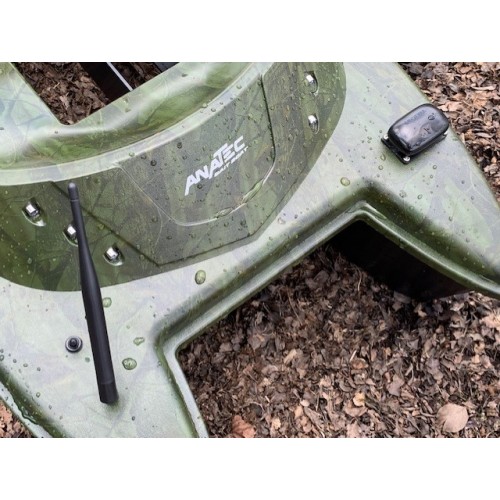

Note: We now fit the GPS compass in side the boat.

Product Information

Manufacturer No
Length No
Width No
Height No
